What Pipes Are in Your DFW Home — A Guide by Decade of Construction
Most DFW homeowners do not know what pipe materials are inside their walls until something fails and a plumber opens the wall to show them. The answer is not random. Every home built in a specific decade was constructed with the materials that were standard, code-compliant, and available at that time. Knowing your home’s construction year tells you — with a high degree of accuracy — what is running through your walls, how old those materials are, and how close they are to their known failure window.
Why Your Home’s Construction Year Is the Most Important Plumbing Fact You Should Know
Builders do not choose pipe materials based on what will last the longest. They choose what is code-compliant, available from local suppliers, and affordable at the time of construction. That decision was made once — when your home was built — and the consequences of it are still inside your walls today.
Every major pipe material used in residential construction has a known service life and a predictable failure window. Galvanized steel supply pipes corrode internally and begin restricting flow at 25 to 50 years. Polybutylene degrades when exposed to chlorinated municipal water and fails unpredictably between 10 and 25 years of service. Cast iron drain lines corrode from the inside out and show significant deterioration at 40 to 60 years. Copper supply lines last 50 to 70 years but accumulate scale at connections and fittings in hard water areas.
None of these failure windows are guesses. They are documented patterns observed across millions of homes over decades of plumbing service work. A licensed plumber who knows your home’s construction year knows which materials are likely present and how far into their service life they are before a single wall is opened or a single test is run.
For a DFW homeowner that construction year is the most useful piece of information you can provide when calling a plumber. It shapes every assessment, every inspection priority, and every recommendation that follows. If you do not know your home’s construction year it is listed on your property tax record, your title documents, and your city’s permit history.
Homes Built Before 1960 — Cast Iron and Galvanized Steel
Homes built in the DFW area before 1960 were constructed with two pipe materials that were universal in residential construction at the time. Cast iron for drain lines and galvanized steel for supply lines. Both materials were considered durable and appropriate for the era. Both are now 65 to 75 years old and showing the predictable consequences of that age.

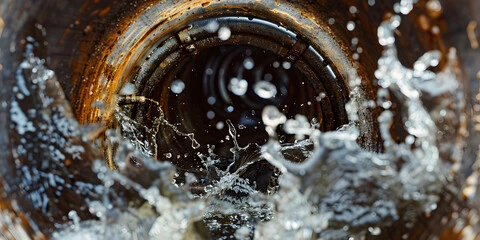

Cast iron drain lines are heavy, dark grey or black metal pipe connected with hub and spigot joints sealed with lead and oakum packing. They were installed in virtually every home built before 1960 and remained common through the early 1980s. Cast iron lasts 50 to 100 years under ideal conditions but corrodes from the inside out continuously in hard water areas. In North Texas, where Dallas Water Utilities and NTMWD deliver hard water that accelerates internal corrosion, the effective lifespan trends toward the lower end of that range. A cast iron drain line in a pre-1960 DFW home that has never been inspected may have significant internal deterioration that is invisible from the outside until the pipe collapses or backs up completely.
Galvanized steel supply lines are recognizable by their dull silver-grey appearance and threaded connections. Galvanized steel corrodes from the inside out as the zinc coating breaks down over time. That corrosion narrows the pipe’s interior diameter progressively. A galvanized steel supply line that once carried full household water pressure may be partially blocked by rust and mineral deposits after 30 to 40 years of service. In hard water conditions that timeline accelerates. The rust particles released into the water supply discolor water at the tap and damage appliances.
Older neighborhoods in Mesquite along Gus Thomasson Road, the pre-1960 residential streets in Garland near Garland Road, and the original development areas of Richardson near Belt Line Road all have meaningful concentrations of pre-1960 housing stock where both materials remain active.
Signs these materials are failing include slow drains throughout the house, sewage odors inside or outside the home, discolored or rust-tinted water, low pressure at multiple fixtures simultaneously, and visible rust staining around drain openings or fixture connections. A camera inspection is the only reliable way to assess the internal condition of cast iron drain lines without excavation. A pressure test across the supply system identifies where galvanized steel has narrowed enough to affect flow. Our foundation leak detection and pipe repair service covers both assessments and provides a written report before any repair work is recommended.
Homes Built 1960 to 1978 — Copper Supply Lines and Cast Iron Drain Lines
The 1960s brought a significant shift in residential supply line materials across North Texas. Galvanized steel was phased out in favor of copper which offered better corrosion resistance, longer service life, and cleaner water delivery. Homes built between 1960 and 1978 in the DFW area almost universally have copper supply lines and cast iron drain lines — a combination that was considered the gold standard of residential plumbing at the time.
Copper supply lines are recognizable by their distinctive reddish-orange color and soldered or compression connections. Under ideal conditions copper lasts 50 to 70 years. In North Texas that lifespan is compressed by hard water. NTMWD and Dallas Water Utilities water deposits scale on the interior walls of copper pipes at connection points, valve seats, and anywhere water slows or changes direction. Over 50 to 60 years that scale accumulation reduces flow, stresses solder joints, and contributes to pinhole leaks — small perforations in the pipe wall that develop where corrosion has thinned the copper from the inside. Pinhole leaks in copper are a known failure pattern in hard water areas and occur more frequently in DFW than in low-hardness water regions.
Cast iron drain lines from this era are now 45 to 65 years old. The same internal corrosion process that affects pre-1960 cast iron is active in these homes. The pipes have had less time to deteriorate than their pre-1960 counterparts but are well past the midpoint of their reliable service life. Root intrusion through joint failures is increasingly common in this age range as the original sealing material breaks down.
Garland and Richardson have the highest concentration of 1960 to 1978 housing stock in our service area. Canyon Creek in Richardson and the neighborhoods along Garland Road and Buckingham Road in Garland represent large clusters of homes in this build window. Parts of west Mesquite and older Plano neighborhoods near Spring Creek Parkway also fall in this era.
Signs copper supply lines and cast iron drains are showing age include pinhole leak stains on ceilings or walls, recurring slow drains in multiple fixtures, green or blue-green staining around copper fittings and connections, low pressure that develops gradually, and sewage odors from drain lines showing root intrusion or joint failure.
Copper connections should be visually inspected for corrosion and green staining at every accessible point. Cast iron drain lines in this age range warrant a camera inspection every three to five years to monitor internal deterioration before a full collapse forces an emergency repair.

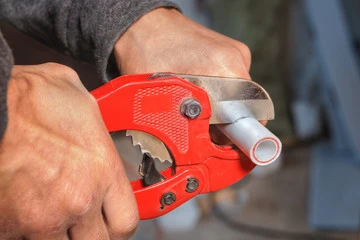

Homes Built 1978 to 1995 — The Polybutylene Era
The period between 1978 and 1995 produced more plumbing failures per home than any other construction era in North Texas history. The reason is a single pipe material — polybutylene — that was adopted across the residential construction industry during this window and has been failing in homes across the DFW metro ever since.
Why polybutylene was adopted comes down to three factors. It was significantly cheaper than copper. It was flexible and easy to work with, reducing installation time on large production home builds. And it met the plumbing code requirements of the time. Builders across DFW used it extensively during the housing growth of the late 1970s through mid-1990s because it made financial sense at the point of construction. The long-term consequences were not yet known.
What polybutylene looks like is one of the most important things a DFW homeowner in this build window should know. The pipe is grey or blue-grey in color — occasionally white or black — with a dull plastic appearance. It is flexible rather than rigid. Fittings are typically grey plastic or aluminum crimped connections. It is found most commonly running through walls, under sinks, and near water heater connections. If you see grey flexible plastic pipe in your home and it was built between 1978 and 1995 it is almost certainly polybutylene.
How polybutylene fails is what makes it particularly damaging. Chlorine and other oxidants present in municipal water supplies including NTMWD and Dallas Water Utilities water cause the material to degrade from the inside out over time. The pipe becomes brittle, develops micro-fractures, and eventually cracks through. Water escapes inside the wall and runs silently for days or weeks before any surface sign appears. By the time a homeowner notices a stain on the ceiling or a soft spot in the floor the water damage behind that wall has already been developing.
Why failures happen without warning is the defining characteristic of polybutylene that separates it from every other pipe material in this guide. Galvanized steel shows pressure reduction before it fails. Cast iron shows slow drains before it collapses. Copper shows green staining before pinhole leaks develop. Polybutylene shows nothing. The exterior of the pipe can look intact while the interior has already fractured. There is no reliable visual inspection method for polybutylene condition short of cutting into the pipe itself.
A national class action settlement — Cox v. Shell Oil — was reached in 1995 and acknowledged the material’s systemic failure rate. The settlement fund paid out over $950 million to affected homeowners before closing. That settlement is the clearest documented evidence that polybutylene failure is not random or installation-dependent. It is a material defect that affects every polybutylene installation as the pipe ages. Rowlett, Garland, Richardson, parts of Plano near Spring Creek Parkway, and older Mesquite neighborhoods all have significant concentrations of homes built in this window. Any home in these areas built between 1978 and 1995 that has never been inspected for polybutylene should be assessed regardless of whether any symptoms are present. The absence of symptoms does not indicate the pipe is intact. Our water leak repair service includes polybutylene identification and assessment as part of any leak-related inspection.
Homes Built 1995 to 2010 — CPVC and Early PEX
The Cox v. Shell settlement in 1995 effectively ended polybutylene use in residential construction. Builders needed a replacement material that was affordable, code-compliant, and available immediately. Two materials filled that gap across DFW’s continued growth through the 2000s — CPVC and early PEX. Both are significantly better than polybutylene. Neither is without its own set of aging concerns as homes in this build window now enter the 15 to 25 year service range.
CPVC — chlorinated polyvinyl chloride — is a cream or off-white rigid plastic pipe that was widely adopted in the late 1990s and early 2000s as a direct replacement for copper in residential supply systems. It handles hot water better than standard PVC and resists the chlorine exposure that destroyed polybutylene. CPVC performs well when installed correctly and maintained in stable temperature conditions. Its vulnerability is thermal stress. North Texas temperature extremes — exceeding 100 degrees in summer and dropping below freezing in winter — cause CPVC to expand and contract repeatedly over its service life. That cycling stresses solvent-welded joints and can cause cracking at connection points over time. CPVC also becomes increasingly brittle with age and is more prone to cracking during freeze events than flexible pipe materials.
Early PEX — cross-linked polyethylene — appeared in DFW residential construction through the late 1990s and became increasingly common through the 2000s. PEX is flexible, freeze-resistant compared to CPVC, and handles hard water better than copper or galvanized steel because its smooth interior does not accumulate scale the same way metal pipes do. Early PEX installations from this era used brass or copper crimp fittings that are now 15 to 25 years old. Those fittings — not the pipe itself — are where age-related failures most commonly occur. Crimp ring corrosion, fitting degradation, and connection failures at the fitting-to-pipe interface account for the majority of PEX-related leaks in homes of this age.
Builder-grade shut-off valves, supply line connectors, and fixture fittings installed during this era are reaching the end of their reliable service life simultaneously. A home built in 2000 has valves and connections that are now 25 years old. Those components were not designed for a 30-year service life under hard water conditions.
Wylie, early Frisco subdivisions along Legacy Drive and Stonebriar, Forney near FM 548, and McKinney’s early growth neighborhoods along Eldorado Parkway all have significant concentrations of 1995 to 2010 construction. These homes are entering the window where connection failures, valve replacements, and fitting inspections become routine rather than exceptional.
Signs CPVC and early PEX connections are showing age include small drips or staining at supply line connections under sinks, reduced pressure at individual fixtures from partially failed fittings, cracked CPVC joints visible in utility rooms or under cabinets, and shut-off valves that leak or no longer close fully when operated.
Homes Built 2010 to Present — PEX-A and Modern Materials
Homes built in DFW after 2010 represent the most modern residential plumbing systems in the metro. PEX-A supply lines and PVC drain systems are the current standard and both are meaningfully better than what preceded them. But newer does not mean problem-free. Every home in this era is receiving the same hard NTMWD water and sitting on the same Collin or Dallas County clay soil as every other home in the metro.
PEX-A is the most advanced form of cross-linked polyethylene currently used in residential construction. It is distinguished from early PEX by its manufacturing process — a method called the Engel process that produces a more uniform molecular structure. The result is a pipe that is more flexible, handles freeze events better than both CPVC and early PEX, and uses expansion-style fittings that create a more reliable connection than the crimp fittings used in earlier PEX systems. PEX-A does not corrode, does not accumulate internal scale the way metal pipes do, and has a projected service life of 50 plus years under normal conditions. It is the best residential supply pipe material currently available for North Texas conditions.
PVC drain lines replaced cast iron as the standard drain system material in this era. Schedule 40 PVC is lightweight, smooth-walled, and resistant to the internal corrosion that degrades cast iron over decades. Root intrusion is less common with PVC than with older cast iron joint systems because PVC uses solvent-welded connections with no gaps for roots to exploit. PVC drain lines in a well-installed system should last the life of the home under normal conditions.
Builder-grade fittings and valves are still present in every home built during this era regardless of how good the pipe material is. Shut-off valves, supply line connectors, pressure regulators, and water heater connections installed during construction are the same code-minimum components used in every other era. In a home built in 2015 those components are now 10 years old. In a home built in 2010 they are 15 years old and approaching the beginning of their first failure window.
NTMWD hard water still affects every home in this era. PEX-A does not accumulate internal scale the way copper or galvanized steel does but the water heater, fixture valves, appliances, and showerheads in a 2012 DFW home have been receiving hard water for over a decade. Scale damage in those components is already measurable even if the pipes themselves are performing well.
The key message for owners of post-2010 DFW homes is straightforward. Your pipe materials are the best that have ever been installed in North Texas residential construction. Your fittings, valves, and water heater are aging on the same timeline as every previous era. And your water is still hard.
How to Find Out What Pipes Are in Your Home
Identifying your pipe materials does not require opening walls. Most homeowners can narrow down what they have with three steps before a plumber ever arrives.
Start with your home’s construction year
If you do not know it, check your property tax record at your county appraisal district website. Dallas County, Collin County, Rockwall County, and Kaufman County all publish this information online at no cost. The construction year alone tells you which materials were standard practice when your home was built and which failure window applies to your system.
Pull permit history from your city’s building department
If your home has had plumbing work done since construction the permit record may document what materials were used or replaced. Cities across our service area including Mesquite, Garland, Plano, Richardson, Frisco, and McKinney maintain permit records accessible online or by request. A repiping permit from 2005 on a 1982 home tells you the supply lines were replaced and likely upgraded out of polybutylene.
Look for visible pipe in accessible areas
Utility rooms, under kitchen and bathroom sinks, in the garage near the water heater, and in any unfinished basement or crawl space give you a direct view of what is running through the home. Use this quick identification guide.
- Dark grey or black heavy metal pipe — cast iron drain line
- Dull silver-grey threaded metal pipe — galvanized steel supply line
- Reddish-orange metal pipe — copper supply line
- Grey or blue-grey flexible plastic pipe — polybutylene supply line
- Cream or off-white rigid plastic pipe — CPVC supply line
- Flexible white, grey, or red and blue plastic pipe — PEX supply line
- White rigid plastic drain pipe — PVC drain line
When visual inspection is not enough, a licensed plumber with a camera inspection scope can assess the internal condition of drain lines and confirm supply line materials in walls without opening them. A pressure test across the supply system identifies weak points and failing connections that look intact from the outside. These tools confirm what build decade and visual inspection suggest but cannot prove. Use our free plumbing diagnostic tool to identify which symptoms your home is showing before calling so we can arrive prepared for what your specific build era is most likely to need.
What to Do If Your Home Has Problem Pipe Materials
Knowing what pipe materials are in your home shifts you from reactive to proactive. Every material below has a recommended course of action based on its failure pattern and current age in a North Texas home.
Polybutylene — replace proactively before failure
There is no repair option for polybutylene that addresses the underlying material defect. Patching a polybutylene failure does not prevent the next one. The only permanent solution is whole-home repiping with PEX-A or copper. Given that polybutylene fails without warning and causes significant hidden water damage before detection, proactive replacement before failure is always less expensive than emergency replacement after one. If your home was built between 1978 and 1995 and has never been repiped, schedule an inspection regardless of whether any symptoms are present. Our water leak repair service includes polybutylene identification and assessment.
Galvanized steel — replace when pressure drops or discoloration appears
Galvanized steel gives more warning than polybutylene before it fails completely. Reduced pressure at multiple fixtures simultaneously and rust-tinted water at the tap are the two most reliable indicators that replacement is overdue. Whole-home repiping from galvanized steel to PEX-A restores full pressure immediately and eliminates the corrosion risk permanently.
Cast iron drain lines — camera inspect every three to five years. Cast iron does not need immediate replacement in every home. It needs monitoring. A camera inspection every three to five years tracks the rate of internal deterioration and identifies sections that are approaching failure before a collapse forces an emergency excavation. When deterioration is confirmed in a specific section trenchless repair or targeted replacement addresses the problem without full system replacement. Our foundation leak detection and pipe repair service covers both camera inspection and repair options.
Copper with hard water — maintain connections and install a water softener
Copper supply lines in good condition do not need immediate replacement. What they need is hard water protection to slow the corrosion that NTMWD and Dallas Water Utilities water accelerates at connection points and valve seats. A whole-home water softener installed today extends the remaining service life of existing copper pipe meaningfully. Read our hard water guide for North Texas homeowners for the full picture of what hard water does to copper and every other pipe material in a DFW home.
The core principle across all four materials is the same. Knowing what you have allows you to plan maintenance, budget for eventual replacement, and make decisions based on your pipe material’s actual condition rather than reacting to an emergency that could have been anticipated.
Your home’s construction year is the starting point for every honest plumbing assessment. It tells you what materials are inside your walls, how old they are, and what failure patterns to watch for. Buckner Blvd Plumbing Co Inc has been assessing and repairing DFW plumbing systems since 1952 — across every pipe material covered in this guide, in every city we serve, through every era of North Texas residential construction. That history is what we bring to every inspection.
